Schuco AWS 70 SC

Schuco AWS 70 SC

Schuco Aluminium Window

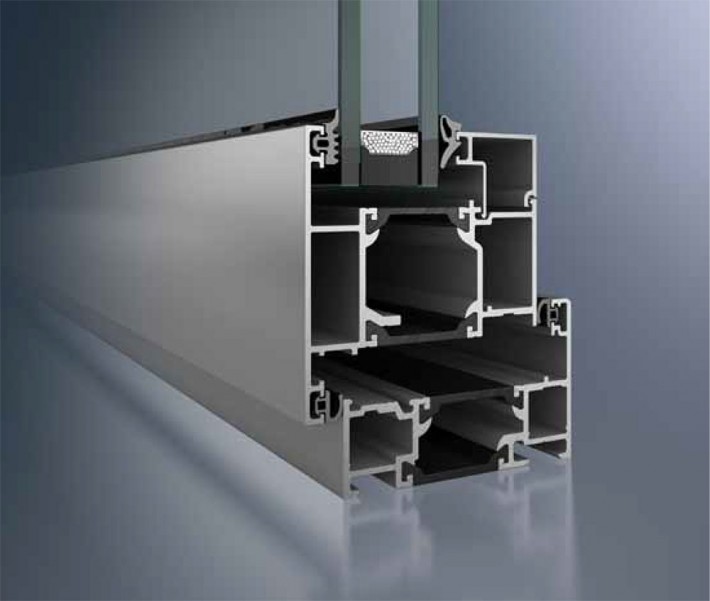

AWS70SC profile

Schuco AWS 70 SC is an outward opening aluminium window system delivering quality with economy. It represents a cost effective solution for new and replacement windows in houses and apartments, light commercial buildings, local authority properties, schools, hospitals and clinics.

While using the minimum number of profiles, the system provides a wide variety of sightlines, sizes and weights from slimline to heavy duty. It can
be used for the fenestration in punched openings, ribbon windows and curtain walling.

The range includes:

• Slimline inside glazed
• Slimline outside glazed
• Standard inside glazed
• HD inside glazed
• HD inside glazed for multi-point locking

Additional options available:

• 900 and variable angle, bay window connections • Projecting sills
• Dual colour choice

Full Brochure




heritage Window

Alitherm Heritage 47

logo_smartsAlitherm Heritage 47 has been designed to offer a modern solution for heritage and renovations applications where the requirement to replace old steel windows is essential.



Overview

Inspired by the aesthetics of traditional steel windows, Alitherm Heritage 47 features signature slim sightlines and attractive contours making it the ideal choice for heritage building conservation areas where building regulations demand a like-for-like replacement.

All main profiles feature polyamide thermal break technology that enhances the thermal performance of the product, allowing Alitherm Heritage 47 windows to achieve a window energy rating ‘A’ grade when fabricated with the correct specification and glazed unit. Profiles have a high quality powder coated paint finish at Smart’s state of the art paint facility in a choice of finishes, including single or dual colour, in a range of standard and non-standard colours.

Design Applications

Windows: fixed windows, side hung & top hung open out casements
Doors: single or double open out balcony doors

Features

Window Energy Rating ‘A’ – when using correct profile, glass unit & spacer bar
Thermal performance
1.5 W/m²K with 1.0 centre pane
1.2 W/m²K with 0.7 centre pane
Method of fabrication: corner crimping
Glazing options 24mm to 32mm
Tape or gasket glazed
Multipoint locking for both window and door
Attractive choice of window furniture – ‘monkey tail’ or ‘bulb end’ handles and peg stays

General

Product Type Windows
Material Aluminium Ployamide
Dual Colour
NBS available



Performance

Thermal Suitability
Min Glazing
Max Glazing



Locking Options

Multi-Point



Building Suitability

Light-Duty

Alitherm 800

Aluminium Windows by Smarts

logo_smartsAlitherm 800 is designed for projects that demand the highest quality aluminium window. All profiles are extruded from 100% recycled aluminium billet and feature extended, chambered polyamide thermal breaks allowing Alitherm to achieve excellent thermal performance.



Product Information

System Overview

Alitherm 800 is designed for projects that demand the highest quality aluminium window. All profiles are extruded from 100% recycled aluminium billet and feature extended, chambered polyamide thermal breaks allowing Alitherm to achieve excellent thermal performance.

Alitherm 800 achieves both Window Energy Rating and BRE Green Guide A ratings.

Applications

All general residential & light commercial applications

System Features

Highest thermal performance window suitable for all residential applications
Profiles extruded from 100% recycled aluminium billet
will achieve under 1.6w/m²K when used in conjunction with correct double glazed sealed unit
Alitherm 800 windows achieve a W.E.R. & BRE Green Guide ‘A’ Ratings.
Extended Polyamide thermal breaks provide excellent thermal performance.

Finish    Single or dual colour, marine quality polyester powder coat as standard
WER Rating   A
BRE Green Guide   A

U Value   1.6 W/m²K or better using correct sealed unit

Air     Test Result Pending
Wind    Test Result Pending
Water    Test Result Pending
Doc L 2010   Yes
Frame Depth   70mm
Glass     24mm, 28mm double or triple glazed units

Side Hung Vent Max o/a width: 700mm
Side Hung Vent Min o/a widith: 300mm
Side Hung Vent Max o/a height: 1400mm
Side Hung Vent Min o/a height: 350mm
Maximum Vent weight:  28kg

Top Hung Vent Max o/a width: 1400mm
Top Hung Vent Min o/a width: 350mm
Top Hung Vent Max o/a height: 1300mm
Top Hung Vent Min o/a height: 275mm
Maximum Vent weight:  40kg

General

Product Type Windows
Material Aluminium Ployamide
Dual Colour
Thermally Broken



Max width 700
Max height 1400
Max weight 28
Thermal suitability
Min Glazing 24
Max Glazing 28

Alitherm 700

Aluminium Windows by Smarts

logo_smartsAlitherm 700 (Parallel) is an innovative solution for enhanced natural ventilation. The system allows for a balanced, effective airflow whilst maintaining security and safety.



Product Information

General

  • Alitherm Parallel is ideal for insertion into curtain wall facades in both low and high rise commercial buildings.
    The system is suitable for use as either replacement windows in existing buildings, or for installation into
    new builds.
  • Alitherm Parallel incorporates internally beaded vents suitable for either cockspur or shoot-bolt locking.
    The system is also suitable for use with chain-operators, operated either individually or as part of an
    integrated automated solution for building climate control.

Please note: Parallel windows over 1500mm width, or 100kg weight should be manufactuired for motorised operation only.

Profile Specification

All profile sections are constructed of aluminium alloy extrusion to BS EN 775, extruded from 6063 T6 alloy. Internal and external extrusions are separated with a polyamide thermal break.

The external aluminium alloy extrusion is pre-treated and finished either:

  • A) Anodised to BS 3987:1987, Grade AA25 to a natural self-colour
  • B) Polyester powder organic coating to BS 6496. Dual colour option is available

Weather Performance

  • BS EN 1026:2000 Air Permeability 600Pa
  • BS EN 1027:2000 Watertightness 600Pa
  • BS EN 12211:2000 Resistance to Wind Load 2400Pa

General

Product Type Windows
Material Aluminium Ployamide
Dual Colour
Thermally Broken

Alitherm 600

Aluminium Windows by Smarts

logo_smartsThermal aluminium casement windows designed to comply with the latest requirements of the Building Regulations Document L.



Product Information

Applications

  • All general use applications

System Features

  • An enhanced system designed to comply with the revisions to the Building Regulations Document L 2010
  • System can achieve WER B Rating
  • Profiles feature an extended polyamide thermal break
  • Ovollo, chamfered or square profiles

Finish

  • Single or dual colour

WER Rating               B

U Value                     1.6W/m²K using correct sealed unit

Air Class 4, 600pa
Wind Class E, 750pa
Water Class 5, 2000pa

Doc L 2010    Yes

Frame Depth   59mm  – 70mm
Glass      28mm double or triple glazed units
SH Max o/a height  1400mm
SH Max o/a width   700mm
TH Max o/a height  1500mm
TH Max o/a width   1400mm
(For sizes outside of these parameters please contact Smarts Technical)

General

Product Type Windows
Material Aluminium Ployamide
Dual Colour
Thermally Broken

Alitherm 300

Aluminium Windows by Smarts

logo_smartsAluminium windows featuring an extended Polyamide thermal break which provides excellent thermal performance. The system will achieve a Window Energy Rating ‘A’ grade and also complies with the latest requirements of Building Regulations Document L 2010.



Product Information

  • An enhanced system designed to comply with the revisions to the Building Regulations Document L 2010.
  • Profiles feature an extended Polyamide thermal break that allows improve thermal performance.
  • Option of ovollo, chamfered or square edge profiles.
  • Alitherm 300 will achieve a WER A Rating.
  • Profiles width: 53mm
  • Single or dual colour, marine quality polyester powder coat as standard

General

Product Type Windows
Material Aluminium Ployamide
Dual Colour
Thermally Broken

Schuco AWS 70.HI

Schuco AWS 70.HI

Schüco AWS 70.HI windows offer a comprehensive range of solutions for special design requirements.
With its bevelled outer corners, the Design Contour RL (Residential Line) is ideally suited to refurbishment projects or for added visual emphasis. The Schüco Window AWS 70 ST.HI system, with its very narrow steel contour, is ideal both for refurbishing old steel windows or fitting new homes with attractive steel-look windows.

Schuco AWS 70.HI

Features:

  • Basic frame depth 70 mm
  • High thermal insulation range
  • Inward and outward opening
  • Vent weight up to 160 kg
  • Burglar resistance to BS 7950 and EN V 1627 WK 3
  • Wide variety design options:
  • AWS 70 RL.HI
  • AWS 70 SL.HI
  • AWS 70 WF.HI
  • AWS 70 BS.HI
  • Typical window Uw 1.4 – 1.5 W/m2K with double glazed unit

Alitherm 55

Smarts Alitherm 55

logo_smarts55mm System proven to Kitemark standards. A choice of profiles and hardware enable this product to be used in a wide range of domestic and commercial situations.



Scope

This specification defines materials, construction finish and hardware for the “Alitherm” 55 Polyamide casement window, which conforms generally with BS 4873 specification for aluminium alloy windows. Windows described in this specification are suitable for both the replacement windows into the existing building and installation into new building work.

Materials

  • Aluminium: AlMgSi 0.5 Type 6060/6063 T5 in condition F22 (according to NBN P21-001 and DIN 1725)
  • Sealings: E.P.D.M. according to DIN 7863, TV 110, NFP 85301, ISO 3994. Tested and approved according to an artificial ageing test of “Plexi glass” combined with vulcanised rubber.
  • Co-extruded profiles: according to DIN 7863, TV 110, BFP 85301, ISO 3994, tested and approved according to an artificial ageing test of “Plexi glass” combined with vulcanised rubber.
  • Thermal break: polyamide strips PA 6.6.25% reinforced with glass fibre.
  • Radiation barrier: polyamide strips PA 6.6.25% reinforced with glass fibre.

Finishing

  • Electrostatic Powder coating: according to the guidelines of A..P.A.-Qualicoat in most of the current RAL-colours.
  • The composed profiles (with thermal break) can be coated with different inner and outer colours (single colour).
  • Anodisation in satin or bronze colours with EWAA/EURAS-Qualinod quality label.
  • Glass shall conform to the requirements of BS 6262 and part N of the Building Regulations for Thickness and Type.
  • Profiles and gaskets will accommodate double glazed units of thickness 28mm

Construction

  • Frame members are mitre cut at 45 degrees and faces coated with a suitable gap sealer using internal extruded aluminium corner cleats together with a gluing compound.
  • Members are abutted and securely jointed by mechanical or crimped means.
  • Transoms and mullions are end milled to shape and mechanically secured to frame members by means of self tapping screws driven in screw receptacles in the profile or by means of internal cleats.
  • All mechanical joints shall be sealed against entry of water.
  • All fixings used in construction shall be either stainless steel, aluminium alloy or other suitable corrosion resistant materials.

Hardware

  • All opening vents are hung on concealed stainless steel variable angled friction stays and fitted with espagnolette type locking handles.
  • To limit the opening restrictor stays shall be fitted.

Glazing

  • Aluminium clip in beads and flexible gaskets inside and out meeting the requirements of BS 6262, Code of Practice for Glazing for Buildings.

Performance

  • Test Report 3823, date 11.06.03. Windows having been tested in accordance with the requirements of BS6375 Pt 1 have achieved the following classification for weather tightness:-
  • Air permeability Class C 600pa
  • Water Tightness 600pa
  • Wind Resistance 2400pa

Product Range

Windows are manufactured to required design to within maximum limitations.

General

Product Type Windows
Material Aluminium Ployamide
Dual Colour
NBS available



Performance

Max width 1400
Max height 1500
Max weight 50
Weather suitability
Acoustic suitability
Thermal suitability
Min Glazing 28
Max Glazing 28
Security rating



Certificates

BS6375 Pt 1
BS6375 pt2
BS7950
BS4873
Kitemark

Locking options

Espag (or two point lock)
Cockspur (or single point lock)
Shootbolt (or multi-point lock)



Hardware options

Egress
Std

Frame options

Odd leg
Even leg
Ovolo
Square
Direct Fix

Jointing

Crimp
Mechanical

Building suitability

Light duty
Medium duty

Smarts Alitherm 47

Smarts Alitherm 47

logo_smarts

Internally or externally beaded with side-light options for domestic and light/medium commercial applications.



Applications:

  • Fixed lights
  • Open out windows
  • Internally or externally beaded windows

Materials:

  • Aluminium: ALMgSi 0.5 Type 6060/6063 T5 in condition F22 (according to NBN P21-001 and DIN 1725).
  • Sealings: E.P.D.M according to DIN 7863, TV110 NFP 85301, ISO3994. Tested and approved according to an artificial ageing test of “Plexi glass” combined with vulcanised rubber.
  • Co-extruded profiles: according to DIN 7863, TV110 NFP 85301, ISO 3994, Tested and approved according to an artificial ageing test of “Plexi glass” combined with vulcanised rubber.
  • Thermal break: polyamide strips PA 6.6.25% reinforced with glass fibre.

Finishing:

  • Electrostatic powder coating: according to the guidelines of APA-Qualicoat in most of the current RAL-colours.
  • Anodisation: in satin or bronze colours with E.E.W.A./EURAS-Qualanod quality label.

Details:

  • Equal leg outer frame
  • Odd leg outer frame
  • Externally beaded cockspur locking vent frame
  • Internally beaded locking vent frame
  • Transom/mullion with screw ports
  • Transom/mullion without screw ports, for use with mechanical cleat
  • Flush coupling adapter
  • Head extension for trickle ventilator
  • 24mm, 28mm and 32mm square external glazing beads
  • 24mm square internal glazing bead

General

Product Type Windows
Material Aluminium Ployamide
Dual Colour
Thermally broken
NBS available



Performance

Max width 1400
Max height 1500
Max weight 50
Weather suitability
Acoustic suitability
Thermal suitability
Min Glazing 24
Max Glazing 32
Security rating



Locking options

Cockspur (or single point lock)
Shootbolt (or multi-point lock)



Hardware options

Egress
Std

Frame options

Odd leg
Even leg
Ovolo
Square
Direct Fix

Jointing

Crimp

Building suitability

Light duty
Medium duty

Smarts Visoline

Visoline windows are available in internally beaded, open-in, pivot & tilt & turn styles. Visoline is a system for windows and doors with a thermal break and is suitable for most traditional door and window applications in houses and industrial buildings. The system is available in most finishes and offers the following features:

  • Built-in depth: outer frame 51 mm, sash 60 mm.
  • Glazing rebate: 22 mm
  • Sealings: centre seal and inside stop rubber in EPDM.
  • Glazing: from 4 to 37 mm.
  • k-value: 3.110 W/m²K (Rahmenmateriaal-Gruppe 2.2)
  • Windows can be joined with variable couplings or standard fixed couplings (such as 90° and 135°) using profiles with thermal break.
  • Adapter profiles for roller shutters.
  • Window sill profiles in various depths available
